Aluminium Cast Plate

Cut to size, Alloy 5083 - H111 aluminium cast plate / Aludur online at great prices!

Aluminium for Molds

Max. 600 x 2020 x 4020 mm

Following DIN EN 573-3 Standards

View the Products
Buy Stock Aluminium Online
Buy Stock Aluminium Online

Browse our ready cut and full sized aluminium stock to find the sizes you are looking for.

Certified Aluminium
Certified Aluminium

Each product’s certificate will automatically be sent to you email address.

Free Cargo over ₺300 Purchase
Free Cargo over ₺300 Purchase

Free cargo for purchases of ₺300 and over.

Payment in Instalments
Payment in Instalments

Credit card payment in instalments in possible.

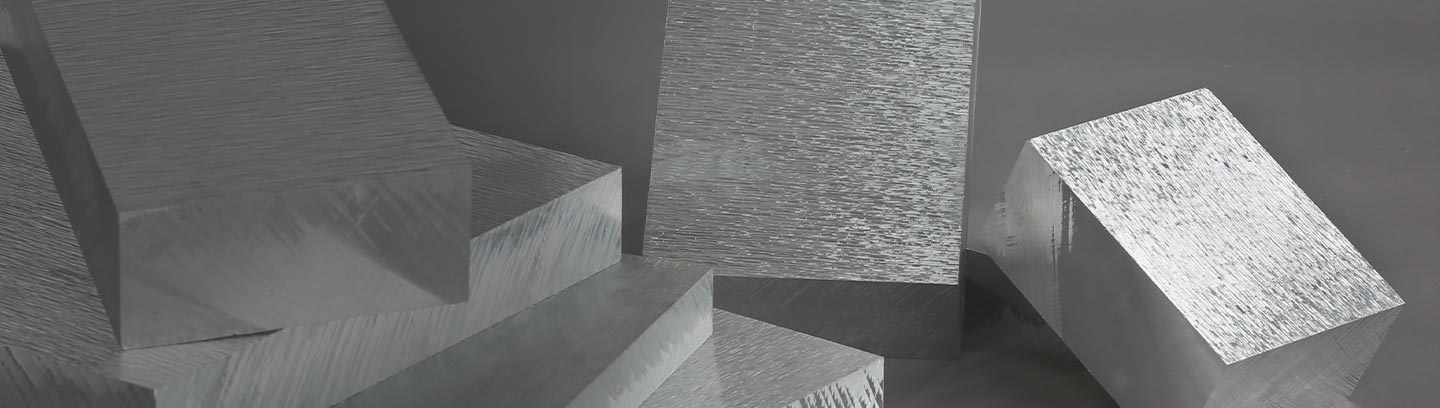

Aluminium Cast Plate / ALUDUR

We supply alloy 5083 aluminium cast plates under our brand Aludur. These plates follow the DIN EN 573-3 norms. We monitor the alloy quality and produce them with very high flatness tolerance.

Aluminium Cast Plate / ALUDUR Sizes

We are able to produce Aludur aluminium plates, at a +/- 0.2 mm tolerance, at the following sizes:

  • Max. 600 mm in thickness
  • Max. 2200 mm in width
  • Max. 4020 mm in length

Aluminium Cast Plate / ALUDUR Specifications

We remove the aluminium’s inner tension through a special heating process. Therefore our aluminium cast plates do not distort during the machining process as the only inner tension left is the tension caused by the machining process.

Alloy 5083

Alloy 5083 is one of the most used alloys. Due to the magnesium and manganese atoms in its structure, it has a high corosion resistance and a high welding capability. Additionally, its’ machinability is also high.

Alloy 5083 aluminium shates and plates are a standard in the shipbuilding industries. They have a very high resistance to corrosion and are resistant to sea water.


5083’s atomic structure is very stable and the alloy has a very low risk of distortion during the machining process.

Alloy 5083 is usually preferred in CNC cutting stations as its’ machinability is very fast and practical.

Alloy 5083 has the highest welding capability of any alloy. Therefore it is a staple of the tanker and silobus industries, where the welding qualities of the aluminium is of utmost importance.

Due to the mangase atoms within alloy 5083, it is very suitable for anodizing.

It is highly sought after in the production of machinery, packaging, fixture and thermoform mold production.

Aludur Aluminium Cast Plate Cutting Tolerances

  • Min 5 mm ile 100 mm arası +/- 0.2 mm tolerans
  • 101 mm ile 180 mm arası +/- 0.5 mm tolerans
  • 181 mm ve üstü +/- 0.5 mm tolerans

Areas of Use

  • Shipbuilding Industry
  • Machinery Industry
  • Automotive Industry
  • Advertising Industry
  • Packaging Machinery and Moulds
  • Plastic Part Production
  • Building Facades and Floor coverings
  • Aerospace Machining Plates
  • CNC Royter Plakaları
  • Fixture Plates
  • Electric and Electronical Material
  • Medical Material Production
  • Printing Machinery

Aluminium Plate Weight Calculation

If you would like to quickly calculate the theoretical weight of the aluminium you need, please visit our aluminium weight calculation page.

If you have any another request, please email us at [email protected] or call us at +902123066060.
